CAD/CAM

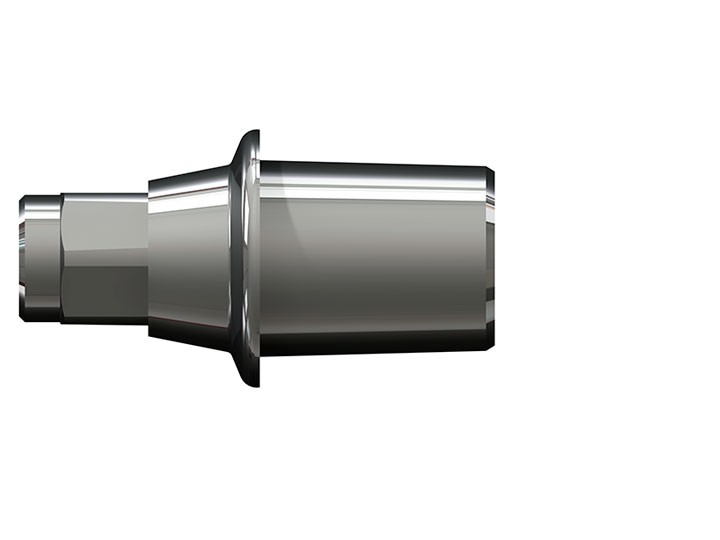

ICX-Cerec adhesive abutment hex 1mm for Cerec L
Characteristics : Protected against rotation
Diameter : Ø 4,5mm
Dimensions : 4.65mm K
Material : Titanium grade 5
Accessories :Incl. Connecting screw and cap for Bluecam and Omnicam
Note : K = length of the stub from the pre-limit

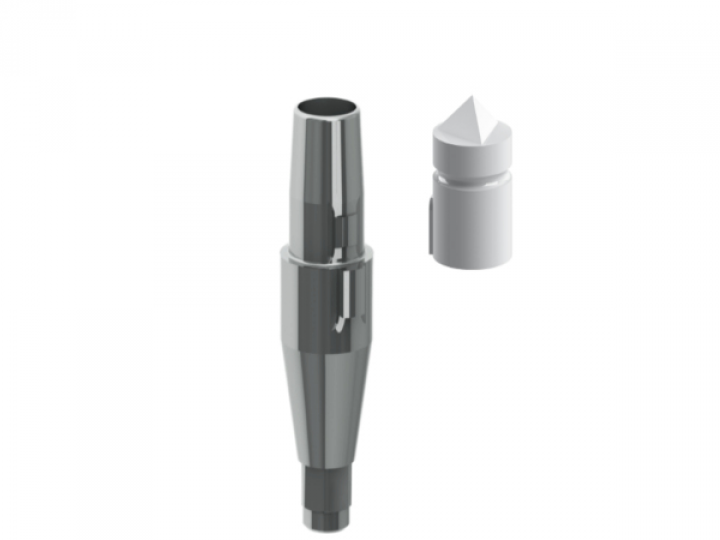

ICX-Cerec-Scanpost L-block, Ø 4,5
Characteristics : Protected against rotation
Diameter : Ø 4,5mm
Dimensions : 4.65mm K, 10mm H
Material : Titanium grade 5
Accessories:Incl. One connection and one laboratory screw, incl
Note: H = height above the implant upper edge, K = length of the stump from the pre-cut limit

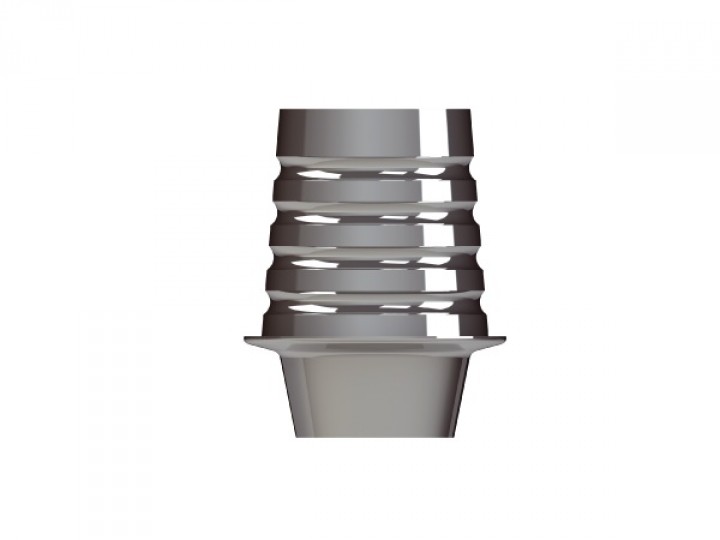

ICX-CrCo adhesive abutment standard, hex
Characteristics : With hex, rotationally secured
Dimensions : 4.8mm H, 4.0mm K
Material : CrCo
Accessories : Including a connection and a laboratory screw, plus rotation protection
Note : H = height above the implant upper edge, K = length of the stump from the pre-cut limit
ICX scan abutment
Material : Peek
Accessories : Including a connecting screw
ICX adhesive base, with hex, Ø 4.4mm
Characteristics : Protected against rotation
Diameter : Ø 4,5mm
Dimensions : 4.65mm K, 10mm H
Material : Titanium grade 5
Accessories:Incl. One connection and one laboratory screw, incl
Note: H = height above the implant upper edge, K = length of the stump from the pre-cut limit
ICX adhesive abutment for zircon tooth system
Material : Titanium grade 5 KV
Outer diameter : Ø 5.1mm
Head height : 4mm K
Characteristics : With hex, rotationally secured
Accessories : Including a connection and a laboratory screw
Note : H = height from implant top (gingival) K = length of the stump from Präpgrenze (addendum)
ICX-Cerec adhesive abutment
Characteristics : Protected against rotation
Gingival height : 2.5mm
Material : Titanium grade 5
Accessories : Incl. Connecting screw and cap for Bluecam and Omnicam
Note : K = length of the stub from the pre-limit
ICX-plus adhesive abutment hex- 0mm
Material : Titanium grade 5 KV
Diameter : Ø 4.4mm
Head height : 4mm K
Gingival height : 0mm H
Characteristics : with hex, Engaging , exclusively for ICX-plus
Accessories : Including a connection and a laboratory screw
Note : H = height from implant top (gingival) K = length of the stump from Präpgrenze (addendum)
ICX-adhesive base 0mm, Ø 4,4mm with hex
Material : Titanium grade 5 KV
Diameter : Ø 4.4mm
Head height : 4mm K
Gingival height : 4.5mm H
Characteristics : With hex, rotationally secured
Accessories : Including a connection and a laboratory screw
Note : H = height from implant top (gingival) K = length of the stump from Präpgrenze (addendum)
ICX adhesive base standard, with hex, Ø 4.4mm
Characteristics : With hex, rotationally secured
Diameter : Ø 4.4mm
Dimensions : 4.8mm H, 4.0mm K
Material : Titanium grade 5
Accessories : Including a connection and a laboratory screw, plus rotation protection
Note : H = height above the implant upper edge, K = length of the stump from the pre-cut limit
ICX bridge adhesive base, Ø 3,8mm
Diameter : Ø 3,8mm
Dimensions : 3.8mm K, 4.3mm H
Material : Titanium grade 5
Accessories : Including a connection and a laboratory screw
Note : H = height above the implant upper edge, K = length of the stump from the pre-cut limit
CERICX construction Molar, standard
Tooth color : B “standard” equivalent: approx A3, B2
Angle : 0 degrees
Material : Zirconium / titanium H = Height from implant upper edge (gingival height):2.5 mm, 3.5 mm
Accessories : Incl. Connection screw
